Solar 4G/LTE IoT Street Light Solution with BJX Series
4G/LTE IoT Solar Street Light: The Simplest Path to Smart City
Gebosun (Sub-brand of BOSUN Lighting) provides the industry's most robust 4G/LTE Smart Solar Street Light Solution. Designed for high-stakes government and municipal projects, this system eliminates the complexity of local networking by allowing every individual light to communicate directly with the cloud via existing cellular towers.
Why Project Managers Prefer Gebosun 4G/LTE
Gateway-Free Architecture: Unlike Zigbee or LoRaWAN systems that require installing and maintaining separate Concentrators (Gateways), our 4G solution operates like a mobile phone. Plug and Play. This dramatically reduces installation time and eliminates the risk of "gateway failure," blacking out an entire sector.
The "Pro-Double" MPPT Advantage: Standard solar lights suffer in cloudy weather. Gebosun's patented Pro-Double MPPT Technology tracks the maximum power point of the solar panel with higher precision, increasing charging efficiency by 20% to 30%. This ensures the battery charges faste,r and the lights stay on longer during the rainy season.

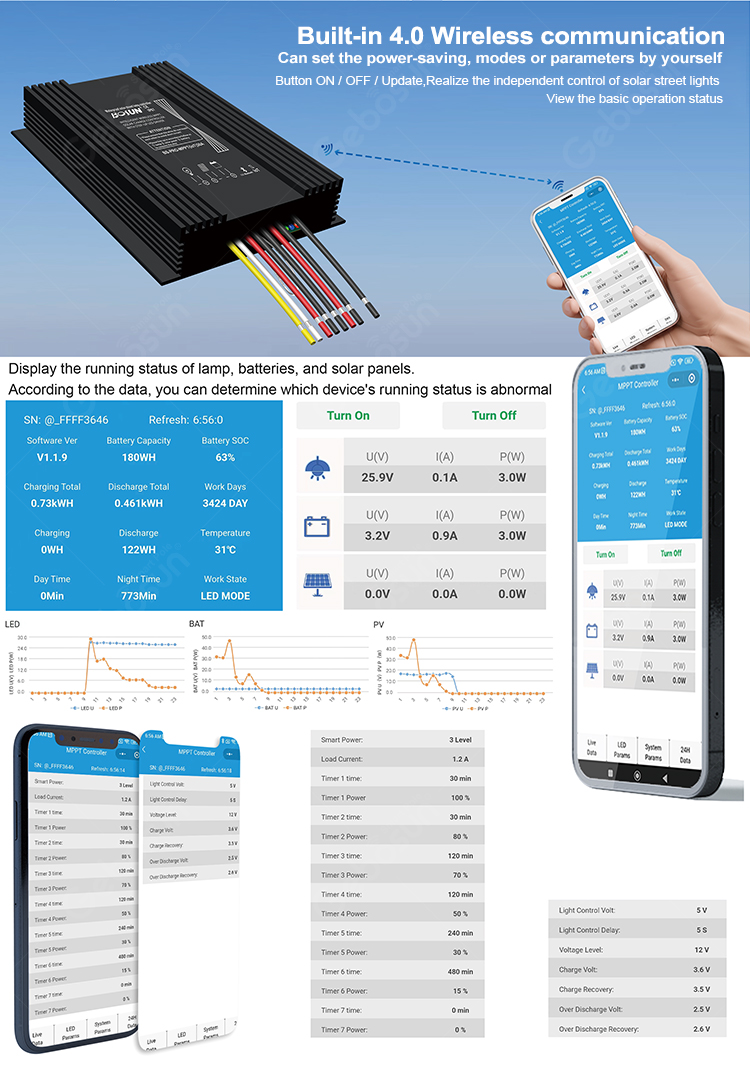

Comprehensive Remote Diagnostics: Stop relying on citizen complaints to find broken lights. The SSLS (Smart Solar Lighting System) platform monitors key parameters 24/7:
PV Voltage & Current: Check if the panel is dirty or damaged.
Battery Health: Monitor charge/discharge cycles to predict replacement needs.
Load Status: Detect LED failure instantly.

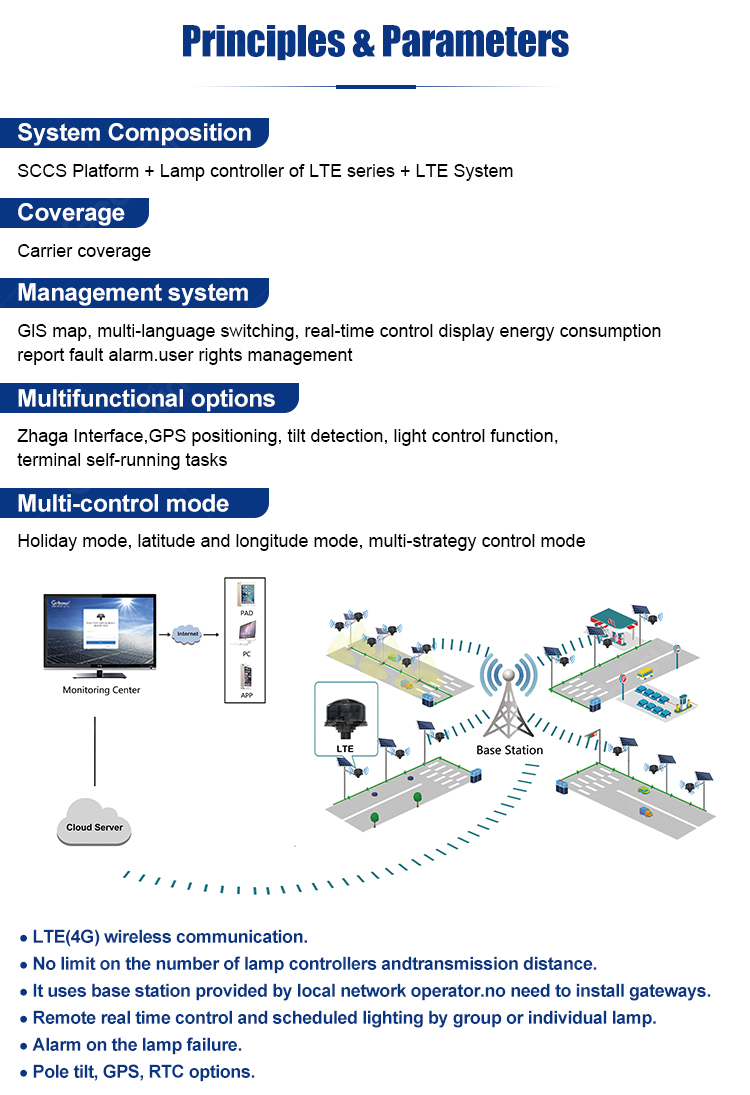

Intelligent Control Strategies - SCCS System
Through the user-friendly dashboard (Web & App), operators can set flexible lighting profiles. For example, lights can run at 100% brightness during peak traffic hours (7 PM - 10 PM), dim to 30% after midnight to save energy, and return to 100% at 5 AM for early commuters.
FAQs About Solar 4G/LTE Smart Street Light
What 4G bands does the Gebosun Smart Solar Light support?
Our IoT controllers are equipped with global 4G modules that support most major frequency bands (LTE-FDD, LTE-TDD) as well as fallback to 2G/GSM. We configure the module based on the specific country of installation to ensure seamless connectivity with local telecom operators.
How much data does the street light consume per month?
Very little. The system is optimized for IoT communication. It sends small "heartbeat" packets containing status data. Typically, a data plan of 10MB to 30MB per month is more than sufficient for normal operation, keeping operational costs (OPEX) negligible.
Can I control the lights individually or do I have to control them all at once?
You have full flexibility. The Gebosun management platform allows for Single Light Control (for testing or specific needs) and Group Control. You can create unlimited groups to manage different zones of the city efficiently.
Is the data secure?
Yes. We use enterprise-grade encryption for data transmission between the street light and the cloud server. Furthermore, we offer options for clients to host the management data on their own local servers for projects with strict data sovereignty requirements.
What is the lifespan of the IoT Controller?
The Gebosun Pro-Double MPPT controller is built with high-quality industrial components and a fully potted design (IP67) to resist heat, moisture, and vibration. It has a design life of over 10 years, matching the longevity of the LED modules and solar panels.
