Xi LP 150W 0.3-1.05A S1 WL I175

Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance,
making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window,
enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades.
In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which offer high value for both
OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant
improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast
way to configure the driver without the need to power the driver.


Product Detail

Product Tags

Xi-LP-150W-0.3-1.05A-S1-WL-I175_01

Xitanium LITE Prog LED drivers Independent

Xi LP 150W 0.3-1.05A S1 WLI175

9290 028 79080

Philips Xitanium Lite Programmable lED drivers are value engineered to deliver a carefully selected feature set and high-end performancemaking it a preferred choice for many outdoor applications. The portfolio offers high fexibility with a customizable operating window.enabling differentiation in LED lighting designs via system tuning and being prepared for LED eficacy upgrades.in this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which offer high value for bothOEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and wil bring significantimprovement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet0, an easy and fastway to configure the driver without the need to power the driver.

Benefits

·Ultimate robustness, offering peace of mind and lower main-tenance costs
·Long lifetime and high survival rate
·Energy savings through high efficiency
·Balanced configurable feature set covering the most common applications
·Superior thermal managementConsistent waterproof performance ·through the lifecycleEasy to design-in, configure and install for Class I applications

Features

·SimpleSeto, wireless configuration interface
·High surge protection
·Long lifetime and robust protection against mois-ture,vibration and ·temperature
·Configurable operating windows(AOC)
·External control interface (1-10V) available
·Digital Configuration Interface (DCl) via MultiOneInterface
·Autonomous or Fixed time based (FTBD) dimmingvia integrated 5-step DynaDimmer
·Programmable Constant Light Output (CLO)
·Integrated Driver Temperature protection

Application

·Road and street lighting
·Area and flood lighting
·Tunnel lighting
·High-bay lighting

Xi-LP-150W-0.3-1.05A-S1-WL-I175_03
Xi-LP-150W-0.3-1.05A-S1-WL-I175_04
Xi-LP-150W-0.3-1.05A-S1-WL-I175_05
Xi-LP-150W-0.3-1.05A-S1-WL-I175_06
Xi-EP-LV-65W-0.9-2.2A-WL-I120_08

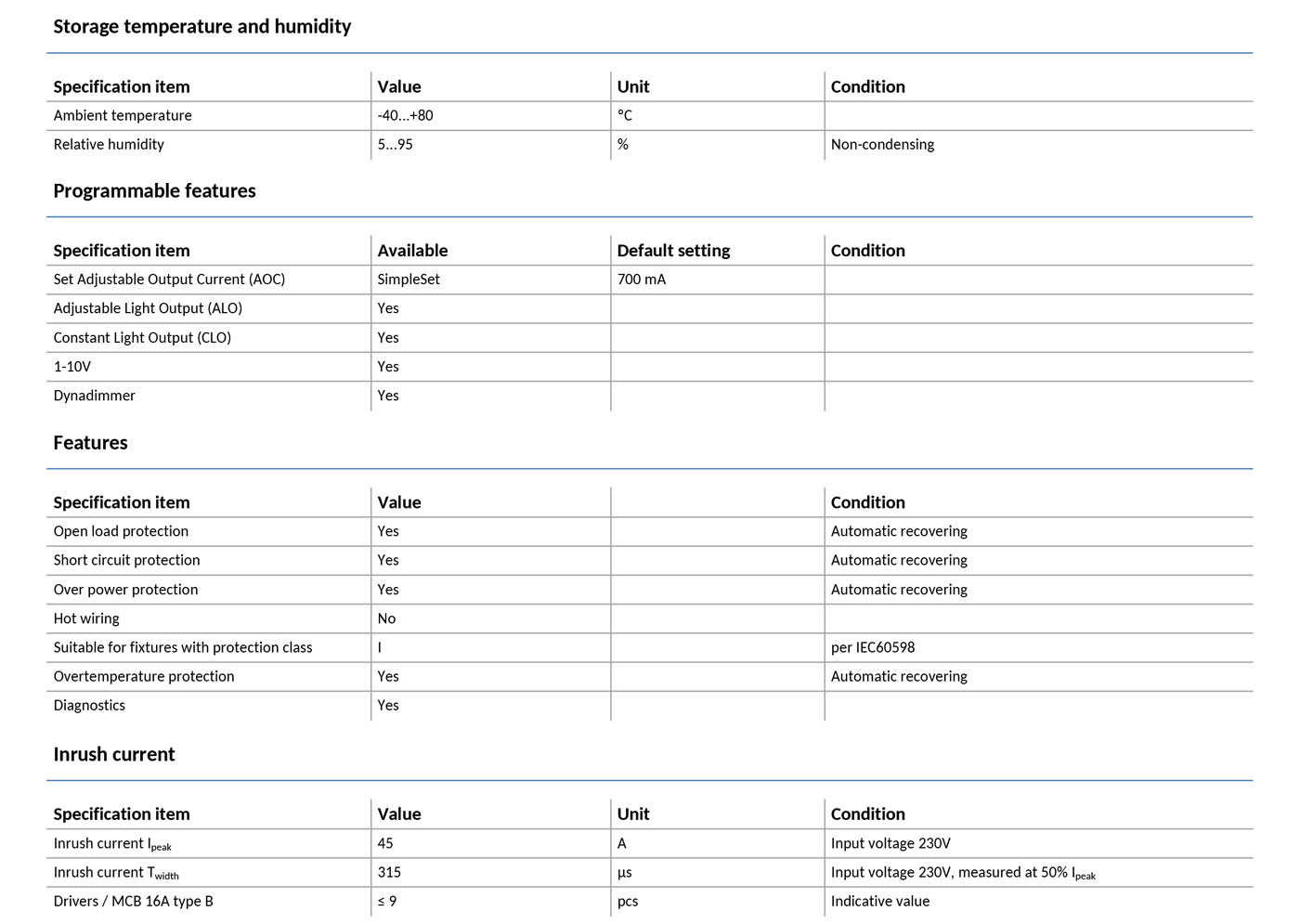

Xi-LP-150W-0.3-1.05A-S1-WL-I175_08
Xi-EP-LV-65W-0.9-2.2A-WL-I120_13
Xi-LP-150W-0.3-1.05A-S1-WL-I175_10
Xi-LP-150W-0.3-1.05A-S1-WL-I175_11
Xi-LP-150W-0.3-1.05A-S1-WL-I175_12
