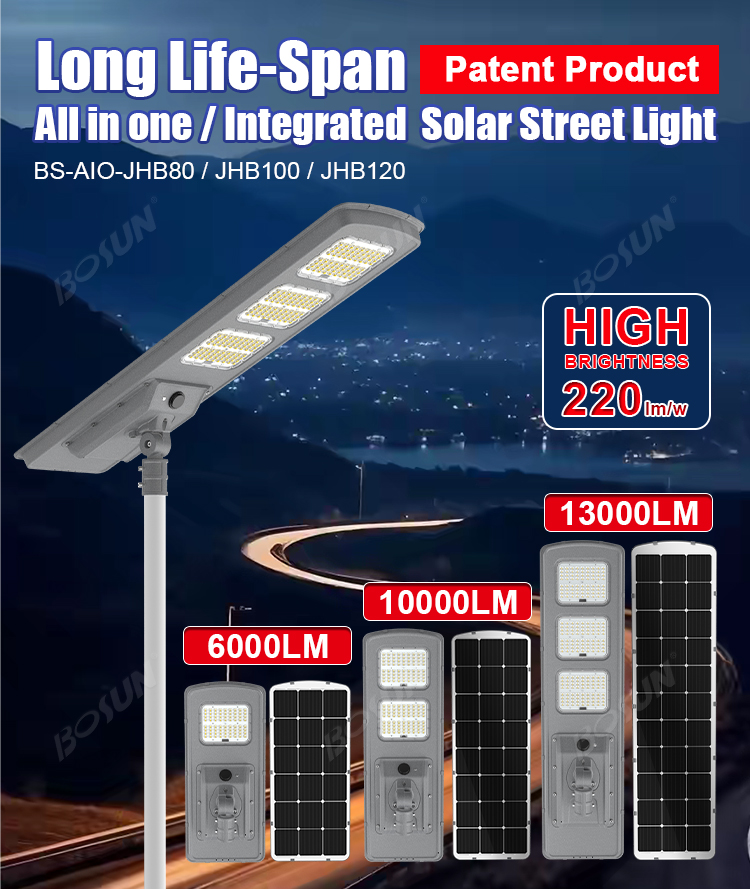

220lm/W High Brightness All in One Solar Street Light

220lm/W High Brightness All in One Solar Street Light | BOSUN JHB Series

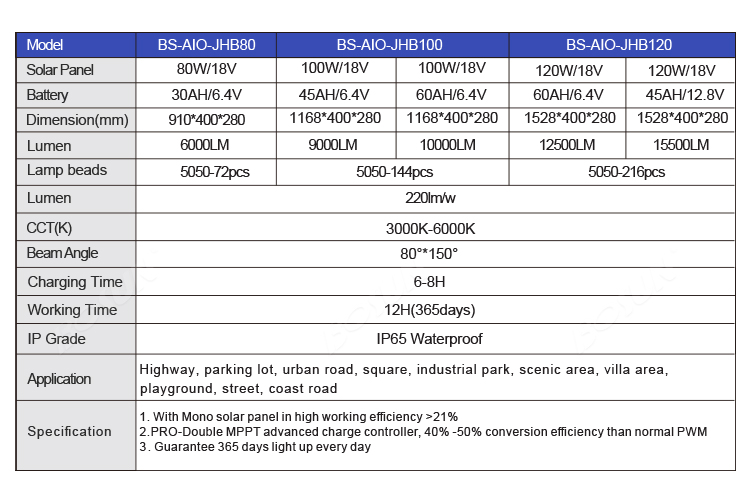

Model: BS-AIO-JHB80 BS-AIO-JHB100 BS-AIO-JHB120

Solar Panel: 80W/10V 100W/18V 120W/18V

Battery: 30AH/6.4V 45AH/6.4V 60AH/6.4V

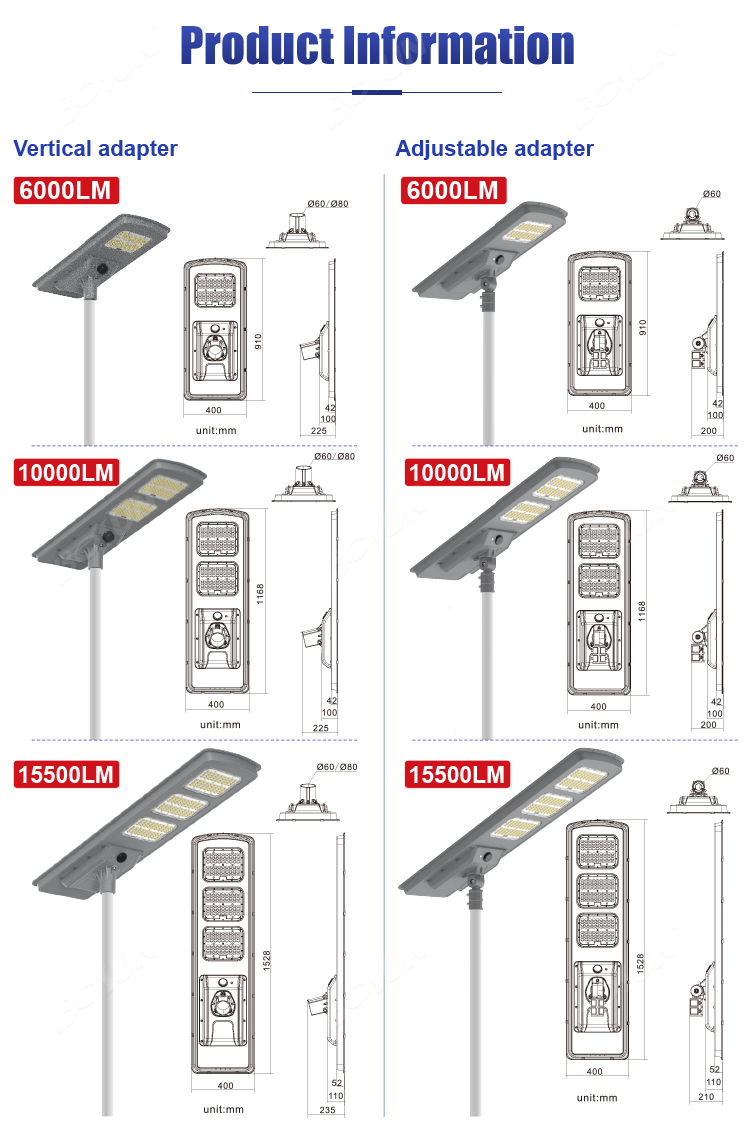

Dimension(mm): 910*400*280 1168*400*280 1528*400*280

CCT（K）: 3000K-6000K

Beam Angle: 70°*150°

lm/W: 200lm/W

Charging Time: 6-8H

Working Time: 12H（365days）

IP Grade: IP65 Waterproof

Send email to us Product Manual

Product Detail

Product Tags

220W High Brightness All-in-One Solar Street Light | BOSUN JHB Series

The BOSUN JHB Series represents a new standard in solar street lighting, delivering an exceptional 220lm/W high luminous efficiency in a fully integrated design. Engineered for professional road, highway, and urban applications, the JHB Series combines high-efficacy LED modules, advanced lithium battery storage, and an intelligent Pro-Double MPPT solar controller into one streamlined system.

This all-in-one solution ensures maximum brightness with minimal energy consumption, extending operating hours while reducing overall project costs. Built with robust materials and IP-rated protection, the BOSUN JHB Series is designed for long-term reliability in demanding outdoor environments. With easy installation, zero electricity bills, and consistent high-performance output, it is an ideal choice for municipalities and developers seeking a high-brightness, energy-efficient, and future-ready solar lighting solution.

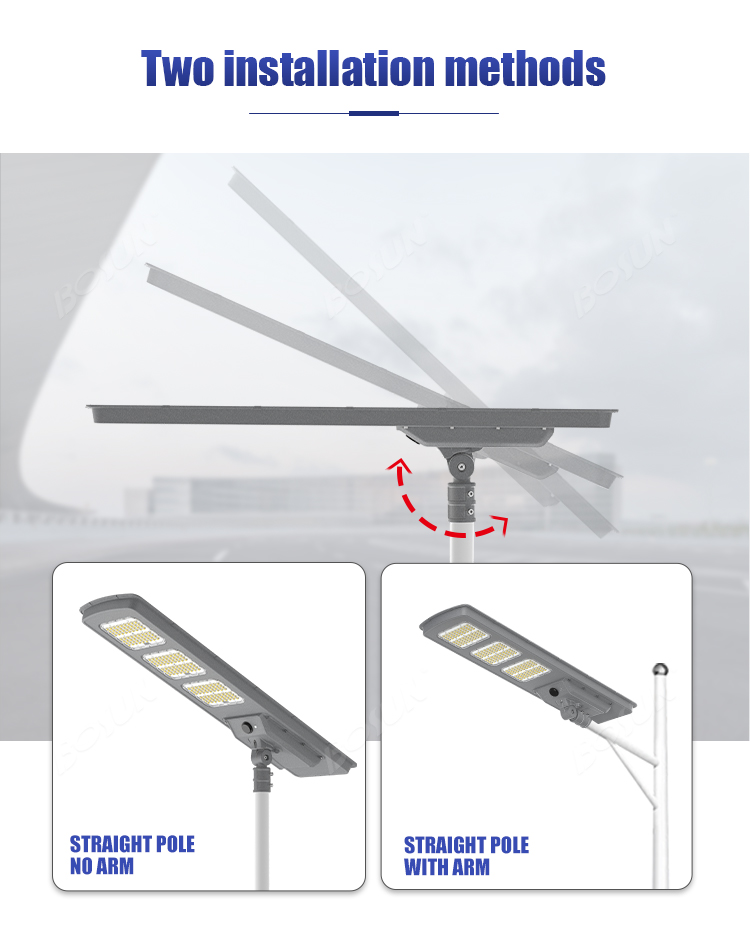

A key feature of the JHB Series is its flexible installation design, offering two mounting options:

Straight pole without arm – a clean, modern setup that provides wide, uniform road coverage with the adjustable angle.

Pole with arm – a more traditional arrangement that enhances light distribution for sidewalks and multi-lane roads.

Optional NEMA Controller – upgrade instantly to a smart solar street light, enabling remote monitoring and smart-city integration.

Optional Motion Sensor – detects movement and automatically adjusts brightness, enhancing safety while saving energy.

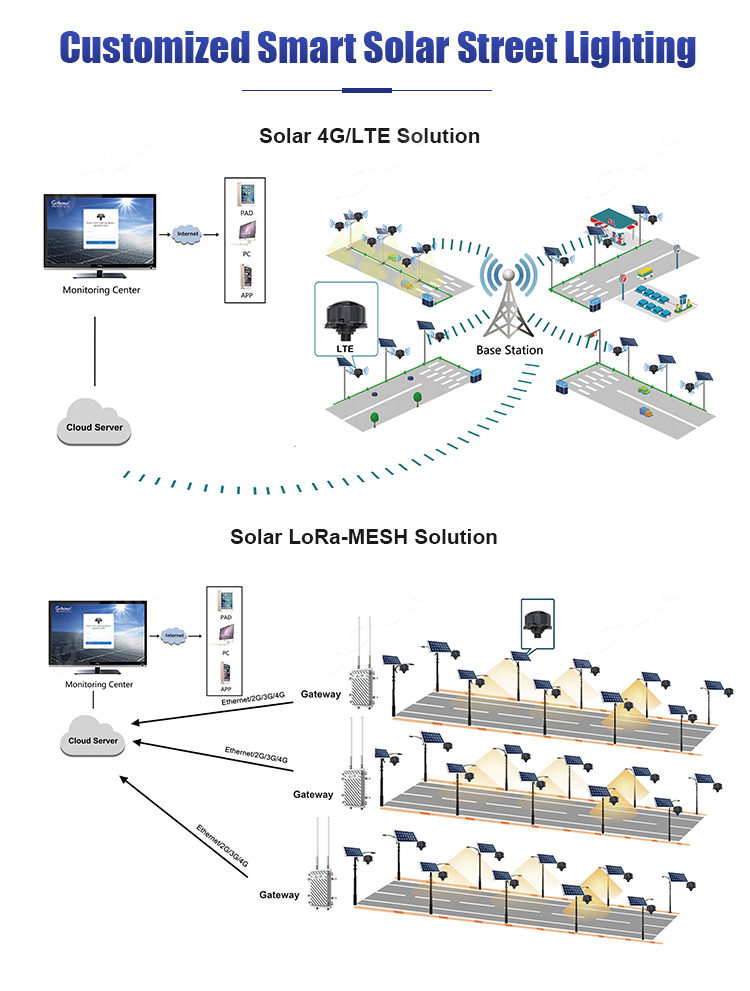

4G/LTE Solution

Uses cellular networks for data transmission.
Provides wide coverage and reliable connectivity without requiring additional infrastructure.
Ideal for projects spread across large areas or where existing telecom networks are strong.
Supports real-time remote monitoring, fault alerts, and centralized control from anywhere.

LoRa-MESH Solution

Based on low-power, long-range wireless networking.
Creates a self-healing mesh network, where each light communicates with neighboring lights.
Highly energy-efficient, cost-effective, and requires minimal data charges compared to cellular.
Best suited for municipalities that want scalable, local networks for large clusters of solar street lights.
